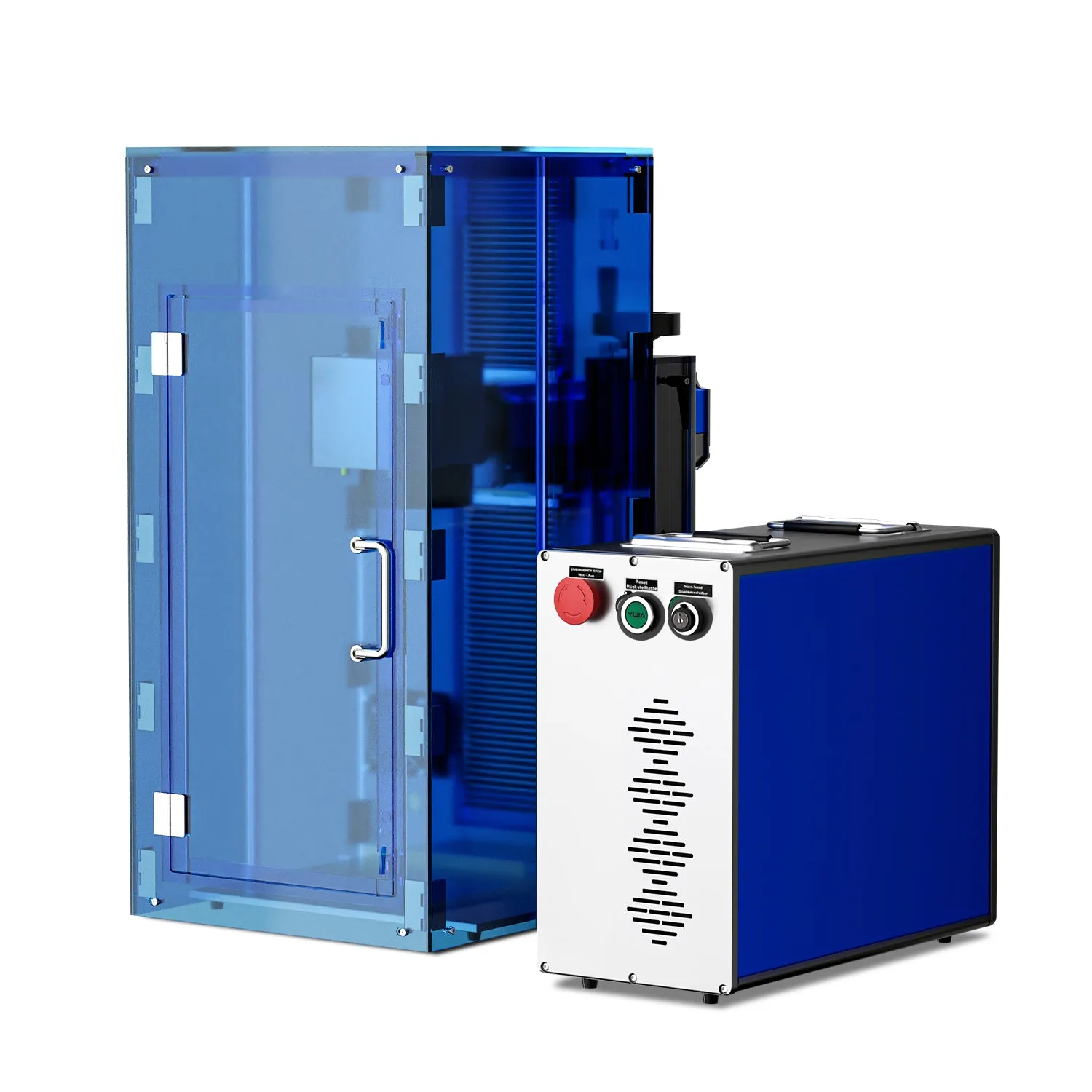

Name: 50W Fiber Laser Cutting Machine for Metal Engraving & Metal Marking | F-50
SKU: 177952

50W Fiber Laser Description

Looking for the most helpful and professional engraving tools?

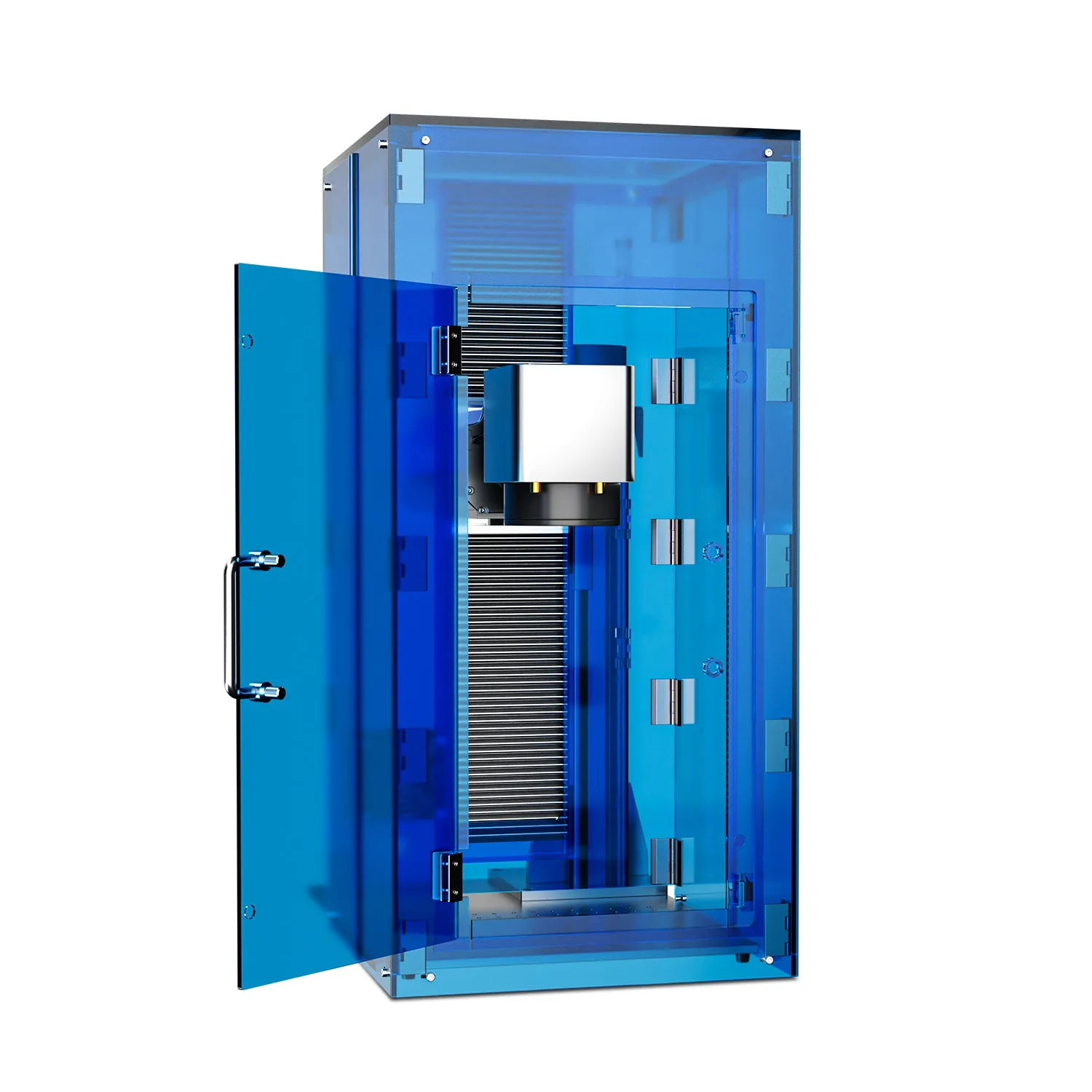

OMTech's 50W fibre laser engraver is your ultimate resource for engraving words, logos, pictures, barcodes, and more on metal (including personalised gold and silver jewellery!) and other materials with quick turnaround and perfect accuracy. Our device's state-of-the-art air-cooled fibre laser avoids the tetchiness, fragility, and water-based mess of CO2 laser tubes. Instead, it provides solid-state efficiency, quality, stability, and durability for its entire service life of 100,000 hours. The Sino-Galvo galvanometric system and compact Fθ field lens ensure quick work with less than 1% distortion from your design. The built-in red dot locators allow you to precisely adjust the height of the laser arm to quickly find the exact focus for various materials. With the optional rotary axis, you are able to mark on curved surfaces. The machine is controlled by its included copy of EzCad2, compatible with Windows 7, 8, and 10. For all your projects marking and cutting metal, rubber, leather, and more, you can do no better. Your fibre laser engraving tool comes with a tinted protective shell to maximise your operational safety and to help you deal with the smoke, soot, and fumes produced during the engraving process. This product ships with abundant insulation and padding to ensure it arrives at your door like it just came off the factory floor. NOTE that this device has an open worktable. It comes with one pair of protective eyewear but anyone else in the room with the device should also have their own laser glasses to avoid any possibility of injury from its beam.

Get the most out of your laser engraving equipment with OMTech!

Features

50W SOLID-STATE LASER: This 50W fibre laser marking machine from OMTech will allow you to bring your ideas to life with greater speed and precision than ever before, etching precious and base metals with perfect clarity; ideal for applications with tight tolerances, the laser source is also incredibly durable with an average service life of over 100,000 hours.
PRECISION OPTICS: This laser metal marking machine's high-speed galvanometric system gives you extreme stability for quick scanning, engraving, and turnaround; make your mark on gemstones, silicon, steel, aluminium, brass, and more as the compact Fθ field lens uses its air-spaced design and protective & anti-reflective coatings to provide throughput with less than 1% distortion.

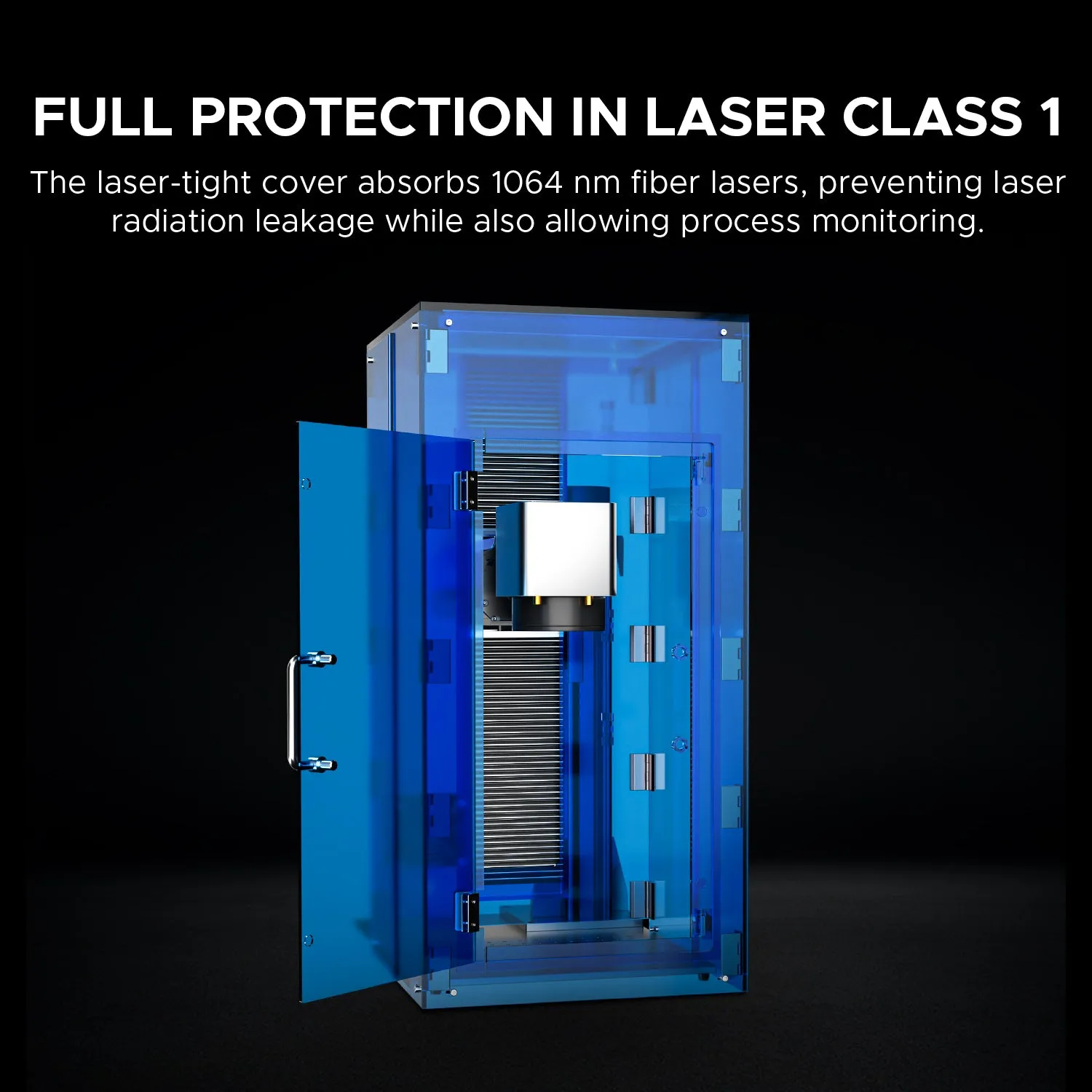

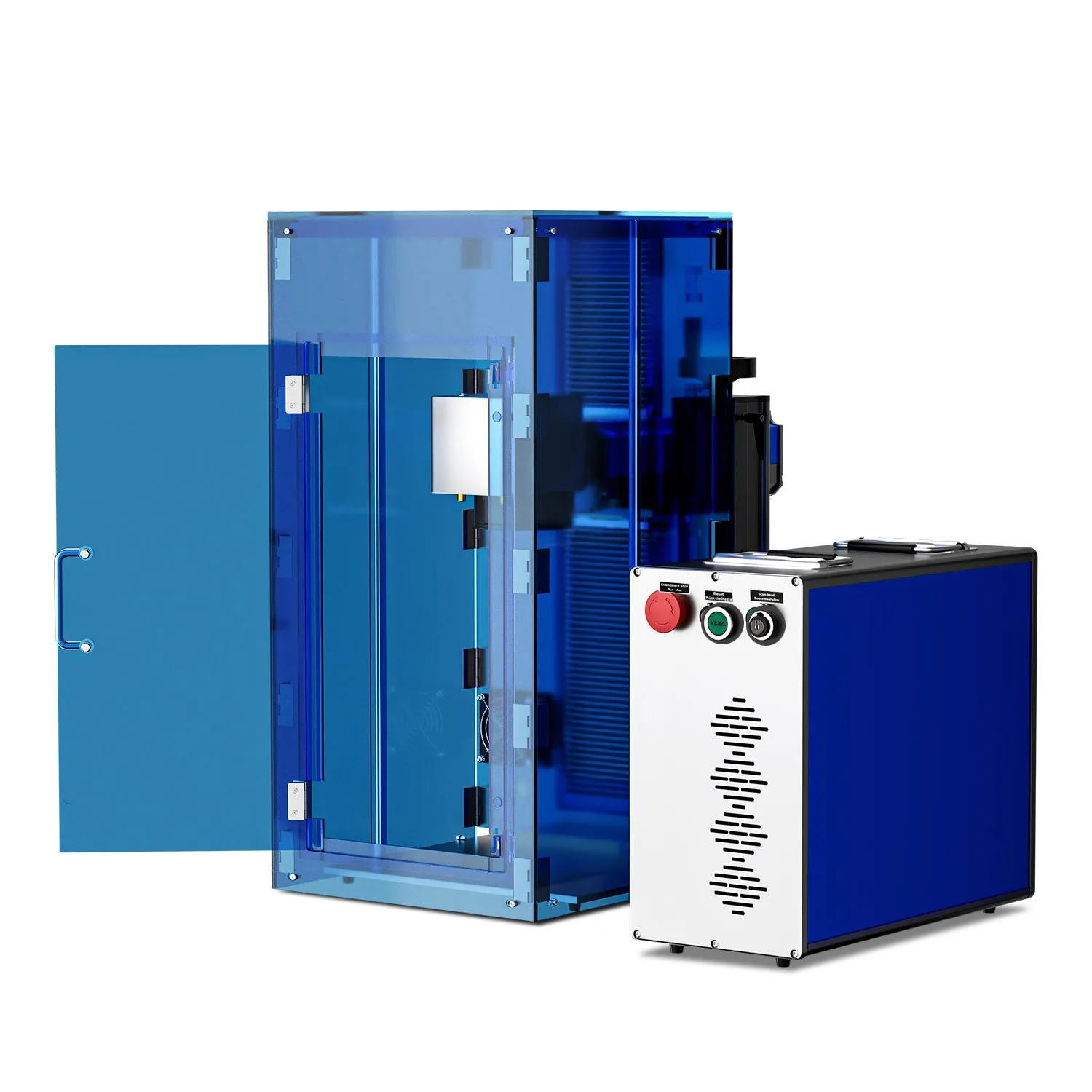

200x200mm WORKBED: This fibre laser cutter provides an 20x20 cm bed with a built-in workspace grid and external laser locator for fast and exact calibration and focusing; an interlocked protective cover and one pair of protective eyewear come included to let you handle the open design safely and cleanly; and grid dots facilitate the positioning bars that can be used to hold your material in just the right spot every time as your laser works at speeds up to 7000 mm/s.

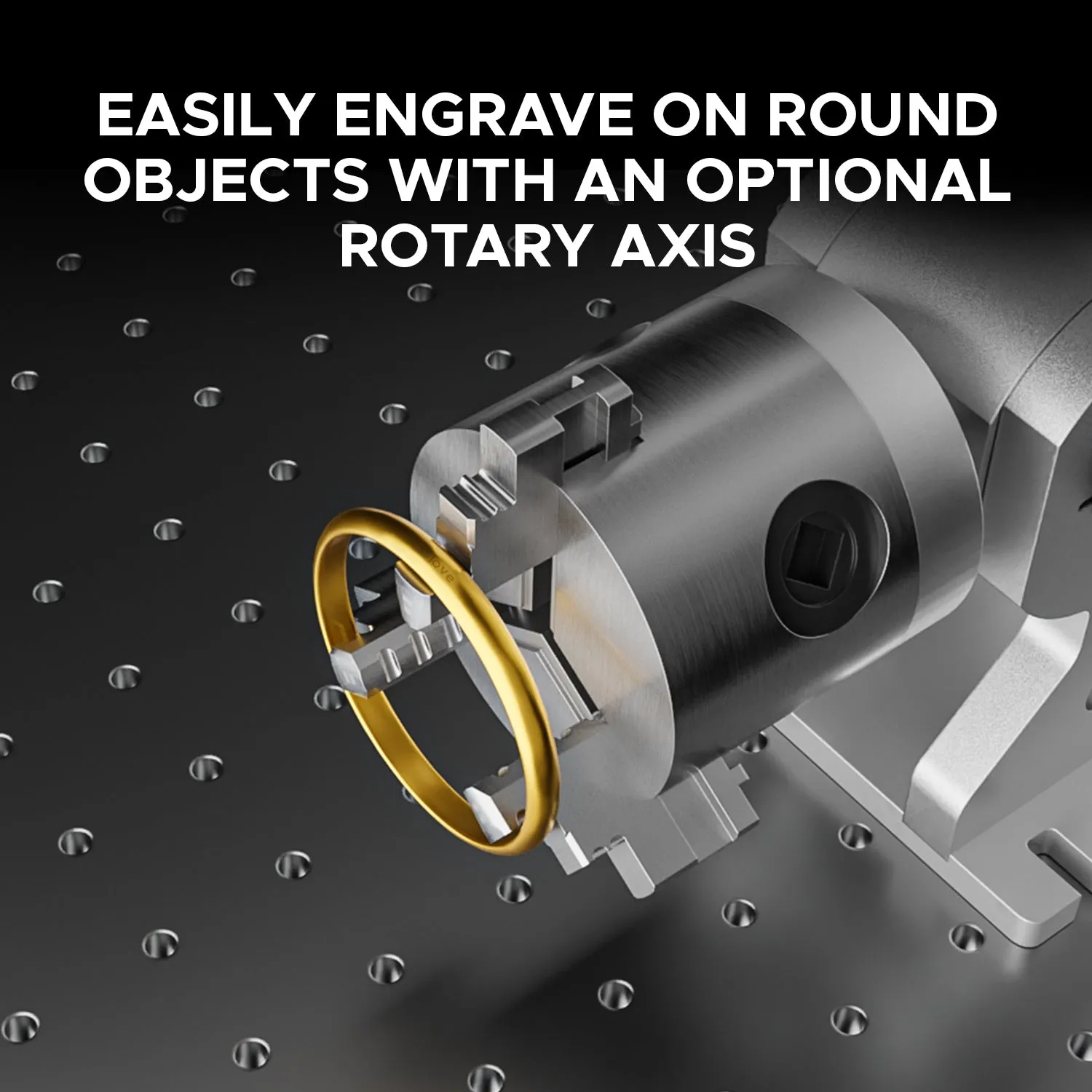

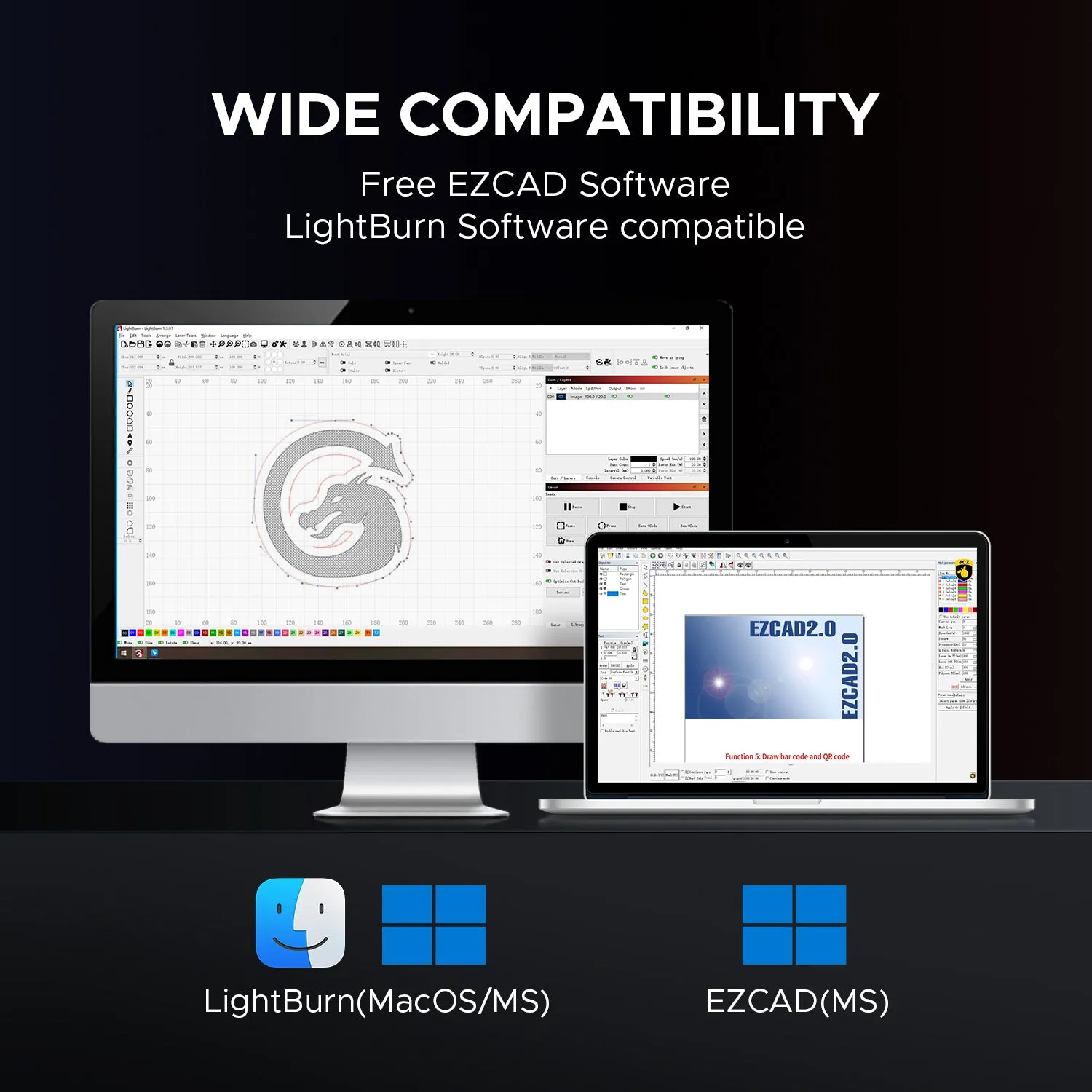

EASY OPERATION: This laser engraving tool comes bundled with EzCad2 software compatible with 32 and 64-bit editions of Windows 7, 8, and 10 and a wide range of image formats (see below); the included footpad trigger keeps batch work humming along, while the emergency button stands by so nothing goes awry; and when you need to engrave rings, bracelets, or other curved surfaces, your rotary axis attachment (not incl.) can be easily connected using the plug-and-play 4-pin connection port.
SUPERIOR SUPPORT & SERVICE: From garage artists to backyard businesses to professional jewelers and workshops, the OMTech community continues to grow thanks to our passionate dedication to making quality engraving available to all; order your own fibre engraver today and enjoy fast EU-based shipping and our ever helpful customer service and tech support.

Specifications

Laser Source: MAX
Galvanometer Source: Galvo-Tech
Output Power: 50W
Laser Wavelength: 1064 nm
Laser Frequency: 50-100 kHz
Engraving Area: 200 x 200 mm
Max. Engraving Speed: 7000 mm/s
Max. Engraving Depth: 0.1 mm on a single pass

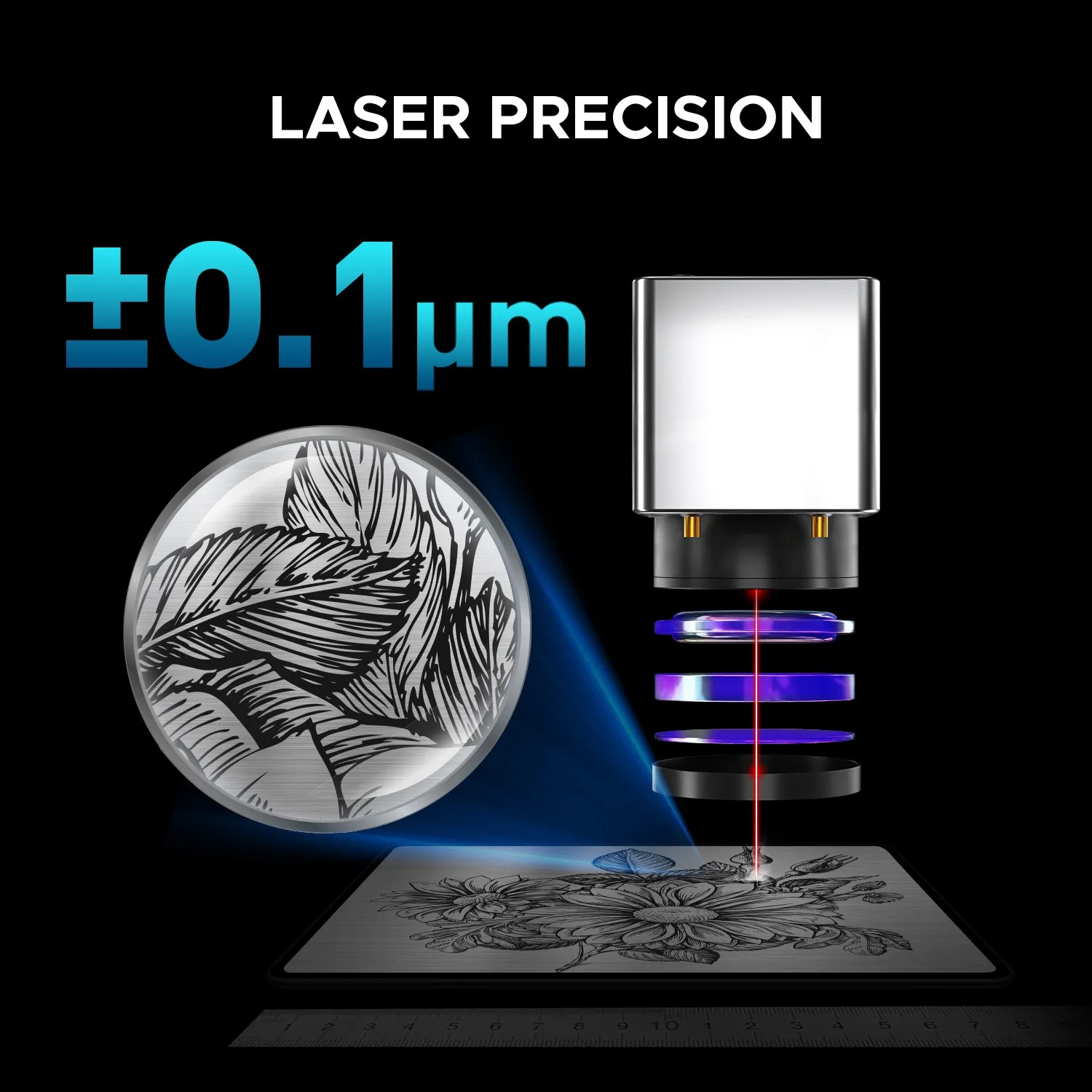

Positioning Accuracy: ±0.1 μm
Est. Laser Service Life (MTTF): 100,000 hr.
Operating Software: EzCad2 for Windows XP, 7, 8, or 10 (32/64 bit)
Supported Image Formats: .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif
Package Dimensions: 84.5 x 59.5 x 78 cm
Package Weight: 65 kg
Certification: CE, FCC, FDA
