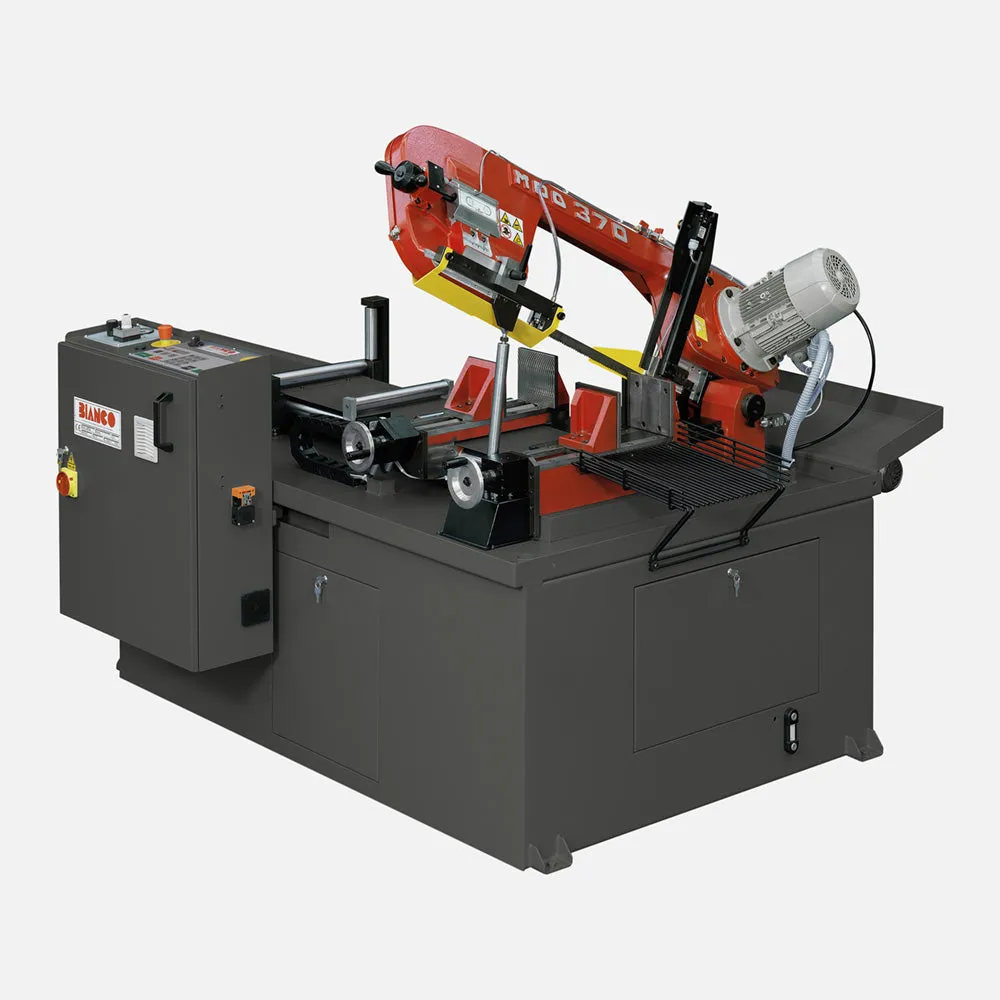

Automatic band saw machine

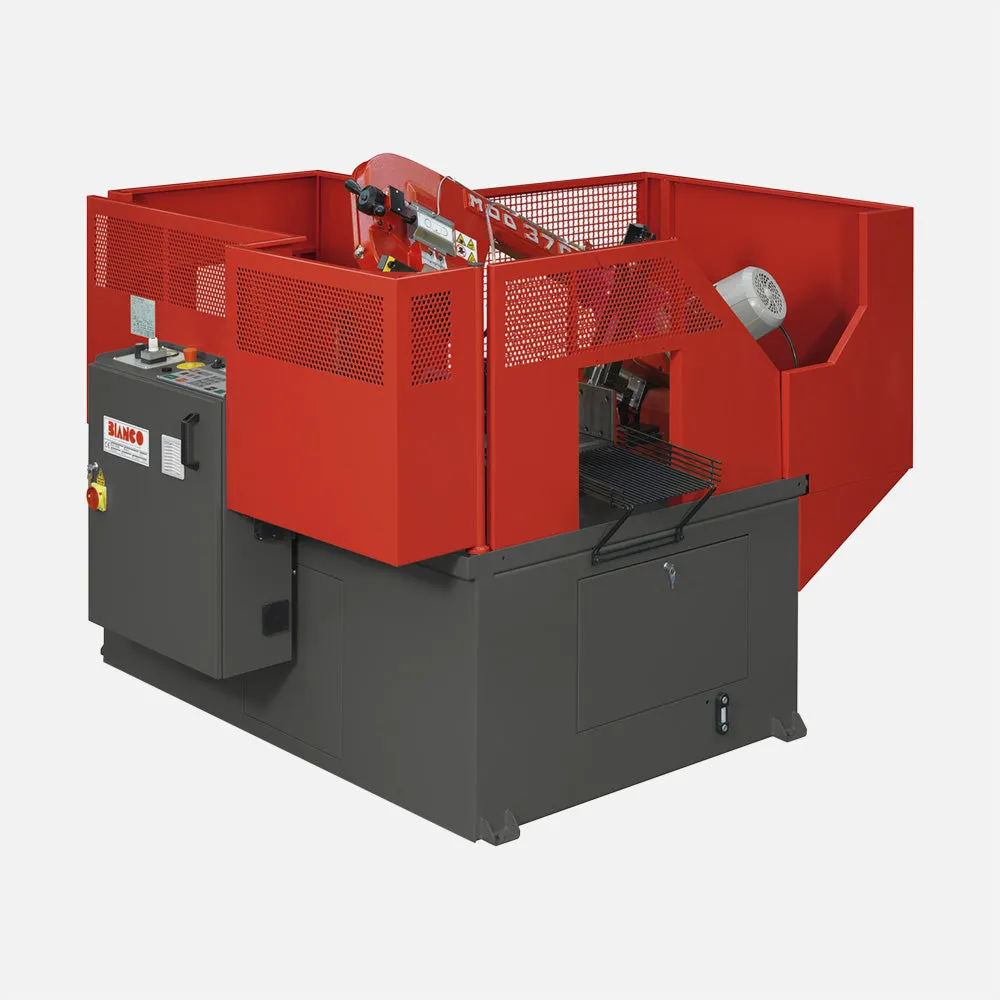

Automatic bandsaw machine with bow, vice movement and material feeding at hydraulic control. Automatic fast up/down bow movement controlled by feeler pin. Down feed with infinitesimal adjustment. CNC to control all the machine functions and possibility to store up to 99 cutting programs. Mechanical blade tensioning controlled by limit switch. The machine is equipped with perimetrical safety protection, double safety button for cycle start-up and low voltage electrical system according to EC rules.
ALSO AVAILABLE WITH 7'' OR 10'' TOUCH SCREEN CONTROL
WE SUGGEST YOU NOT TO FEED FULL MATERIAL BIGGER THAN 150mm Ø WHILE THE MACHINE IS OPERATING IN AUTOMATIC MODE.
FEATURES
- Quantity of pieces to be cut and all machine functions operated and controlled by PLC
- Reducer unit with hardened and ground gears
- Mechanical blade tensioning controlled by limit switch
- Carriage stroke 800 mm
STANDARD ACCESSORIES
- Discharge tray
- Powered cleaning brush
- Chip conveyor
- Inverter
'T10' Only avaiable for TOUCH models
| 90° mm | 280 | 240 | 330x240 |
| Blade | 3120x27x0.9 | ||
