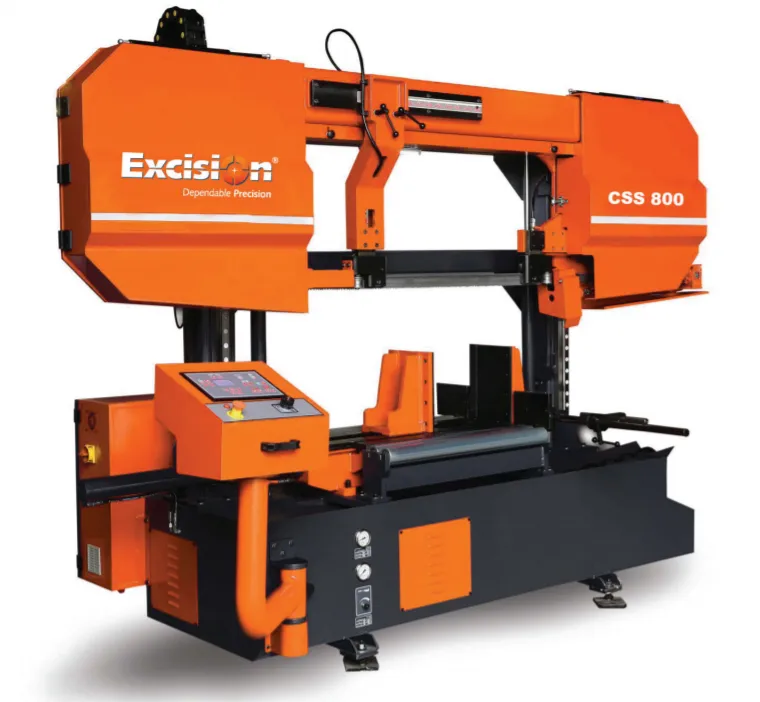

Bandsaw Machine Semi-Automatic Double Column

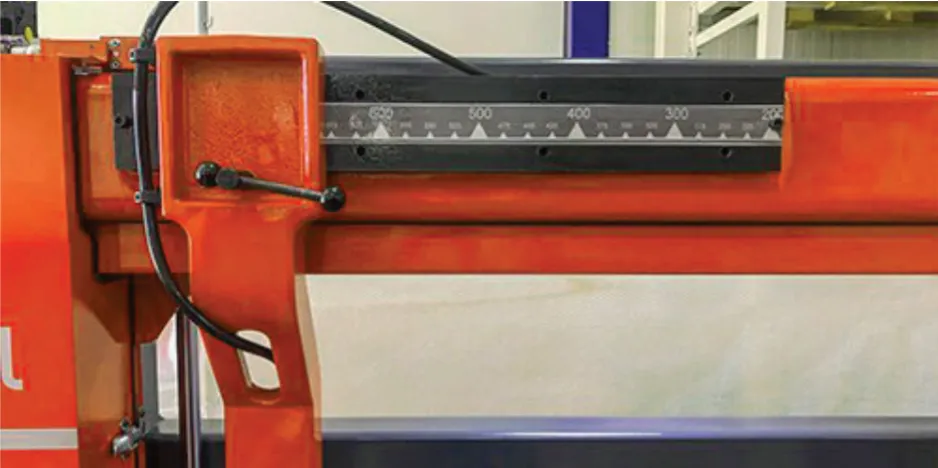

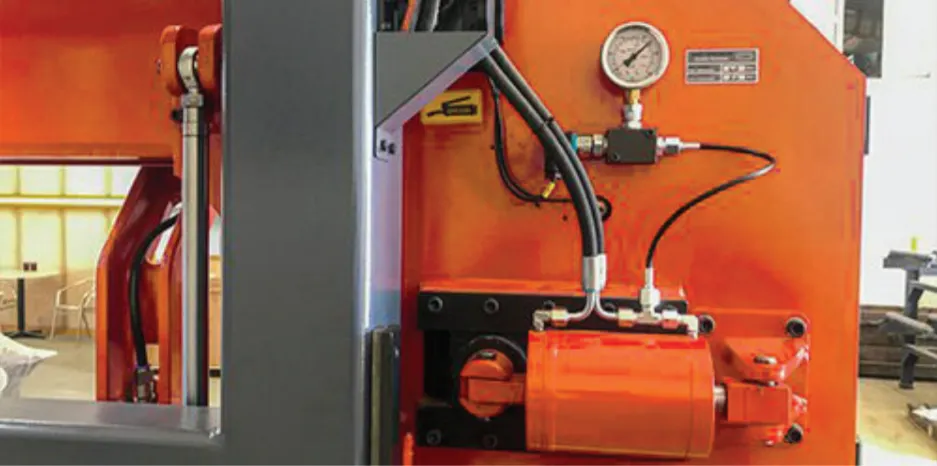

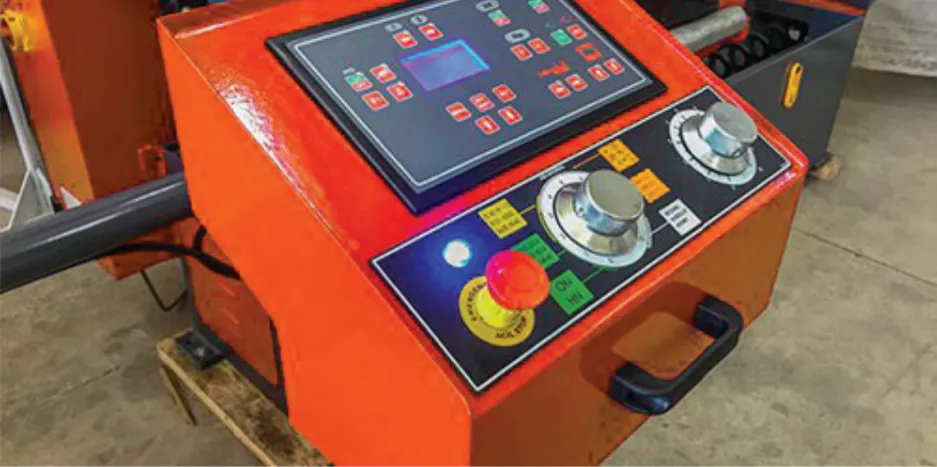

CSS 800 model is a double column semiautomatic bandsaw machine with variable speed. This Machine is designed for straight cutting, precision is guaranteed due to the linear guides. Bow up-down movements are controlled with hydraulic compression. The cut material can be easily tightened thanks to powerful hydraulic vices. This machine includes 2 x 2m infeed / outfeed rollers. The machine is controlled on digital control panel. Hydraulic top clamps can be easily fitted making with machine a great 'pack' cutting saw.
Technical description:
- Main Motor: 5,5kW, ~ 1400 rpm
- Hydraulic Motor: 1,5kW
- Conveyor Motor: 0,12kW
- Coolant Motor: 0,2kW
- Blade Speed: 25-90 m/min
- Feeding Stroke: -
- Blade Size: 6580 x 54 x 1.6 mm
- Weight: 2750 kg
- Working Height: 740 mm
- Dimensions: 1300 x 3300 x 2050 mm
| Cutting Capacity | |||
|---|---|---|---|
| 0° | 560mm | 560mm | 560 x 800mm |
