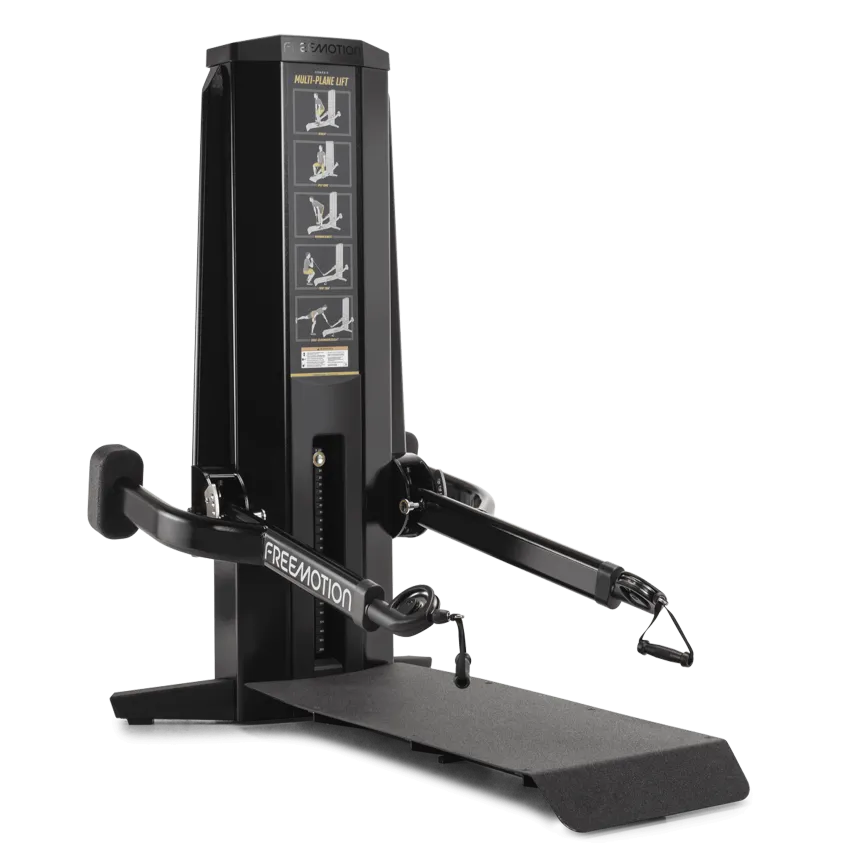

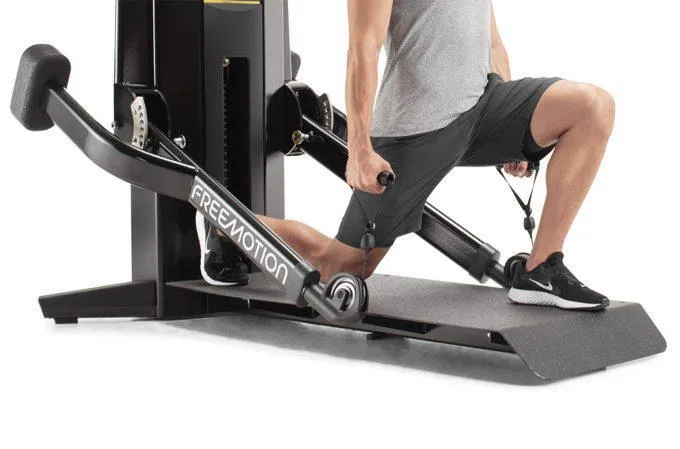

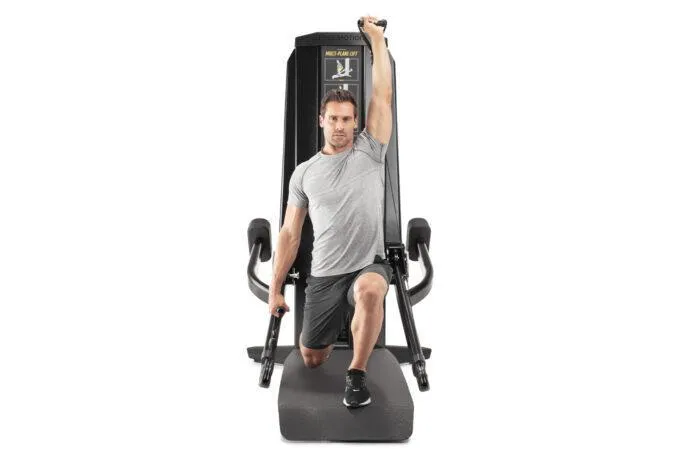

Regardless of user height or which lifting or lunging exercise, the GENESIS Multi-Plane Lift has vertically adjustable handle arms for a precise fit for the movement. The low-profile platform is textured for secure foot placement when moving or stepping off the machine. Swivel pulleys and ample cable travel allow for compound and dynamic movements like a single leg RDL to a row off the platform.
FEATURES
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
Handles move independently for single and alternating side exercises.
The weight stack is enclosed to limit access to moving parts for safety.
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
- Instructional PlacardsYes

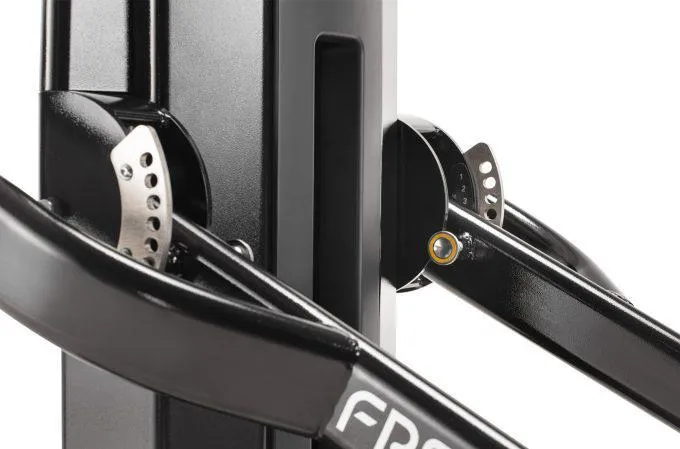

- AdjustmentsIndependently adjustable arms with 6 settings
- Resistance1 arm: 100 lb / 45.3 kg
2 arms: 200 lb / 90.7 kg - SeatN/A
- PulleysSingle swivel pulley
- Cable Travel120 in / 304.8 cm
- Rubber FeetMolded floor protectors
- Maximum User Weight350 lb / 159 kg
- Americans with Disabilities Act (ADA)Wheelchair Accessible
- Weight Stack400 lb / 181 kg
- Drop Down WeightN/A
- Weight Stack Configuration5 - 50 x 5 lb / 2.2 - 22.6 x 2.2 kg
60 - 200 x 10 lb / 27.2 - 90.7 x 4.5 kg - Standard Frame ColorBlack River, Flat Black, Platinum Sparkle, White River
- Optional Frame ColorCustom colors available upon request
- Plastic ColorEbony
- Standard Upholstery ColorN/A
- Optional Upholstery ColorN/A
- Dimensions L x W x H71 x 42 x 77 in / 180.3 x 106.6 x 195.5 cm
- Footprint71 x 42 in / 180.3 x 106.6 cm
- Weight977 lb / 443.1 kg
- Shipping Dimensions76 x 42 x 73 in / 193. x 106.6 x 185.4 cm
- Shipping Weight973 lb / 441.3 kg
- EN957, CE
- Frame10 Years
- Parts3 Years
- Cables & Labor1 Year
- Cosmetic & Wear Items6 Months
- Upholstery & Padding120 Days
