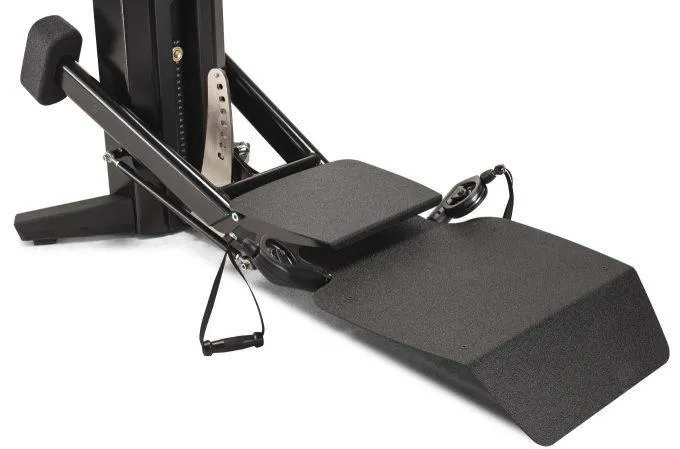

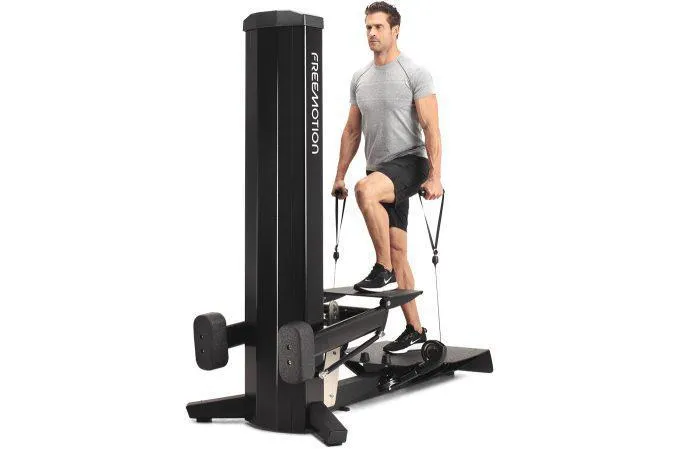

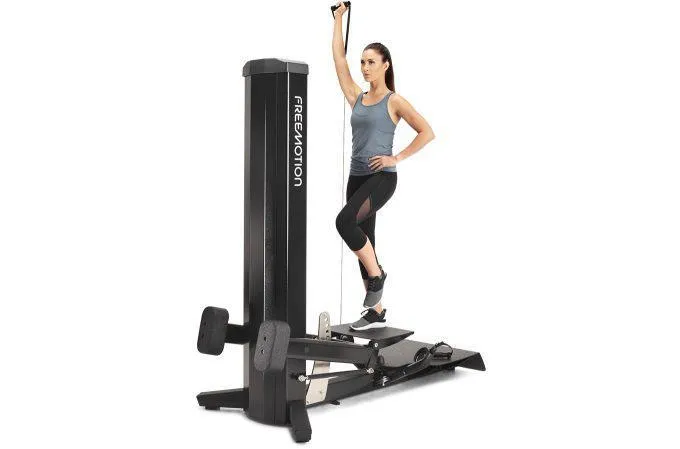

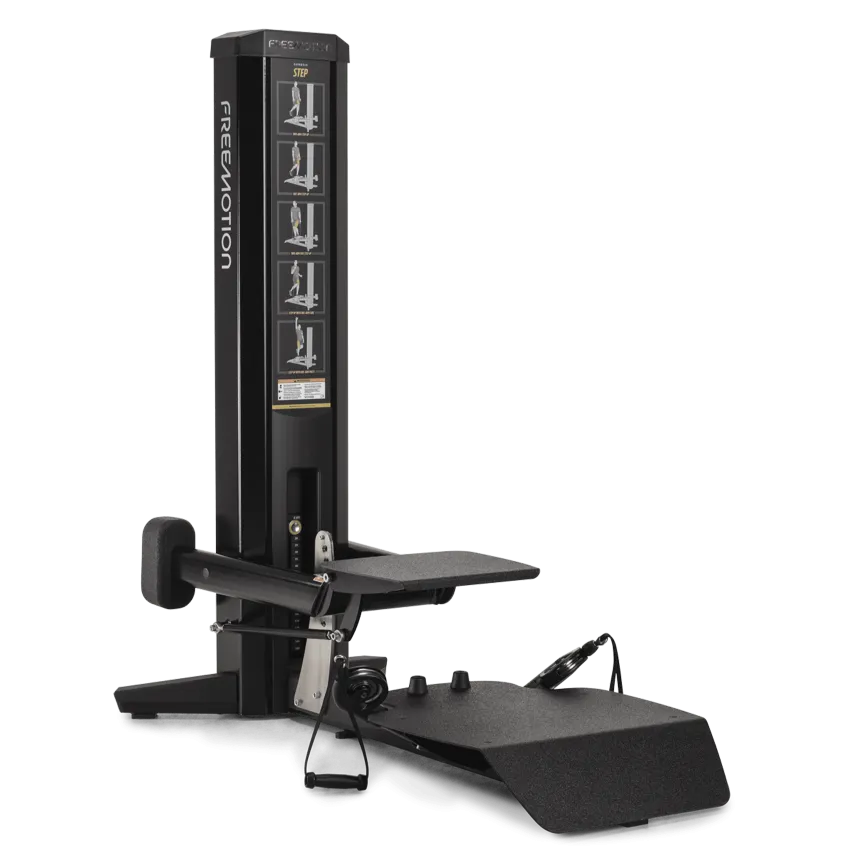

The GENESIS Step is designed to accommodate a wide range of motion for compound exercises through all planes of motion. The counterweighted step with hydraulic assist makes for easy adjustment. Swivel pulleys with 79.5 in / 201 cm cable travel for a single arm adds to the versatility for adding overhead presses to a step-up. Grip texture on the platform and step helps keep feet planted.
FEATURES
EXTENSIVE CABLE TRAVEL
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
MOVEMENT VARIETY
Handles move independently for single and alternating side exercises.
ENCLOSED WEIGHT STACK
The weight stack is enclosed to limit access to moving parts for safety.
BUILT TO LAST
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
KICK PLATES
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
PRODUCT FEATURE
PDF DOWNLOADSPRODUCT FEATURES
- Instructional PlacardsYes
- AdjustmentsAdjustable step with 7 settings
- Resistance1 arm: 75 lb / 34 kg
2 arms: 150 lb / 68 kg - SeatN/A
- PulleysDual lower swivel pulleys
- Cable Travel79.5 in / 201.9 cm
- Rubber FeetMolded floor protectors
- Maximum User Weight350 lb / 159 kg
- Americans with Disabilities Act (ADA)N/A
PRODUCT SPECIFICATIONS
- Weight Stack150 lb / 68 kg
- Drop Down WeightN/A
- Weight Stack Configuration0 - 45 x 5 lb / 0 - 20.4 x 2.2 kg
50-150 x 10 lb / 22.6 - 68 x 4.5 kg - Standard Frame ColorBlack River, Flat Black, Platinum Sparkle, White River
- Optional Frame ColorCustom colors available upon request
- Plastic ColorEbony
- Standard Upholstery ColorN/A
- Optional Upholstery ColorN/A
PRODUCT DIMENSIONS & WEIGHT
- Dimensions L x W x H73 x 36 x 77 in / 185.4 x 91.4 x 195.5 cm
- Footprint73 x 36 in / 185.4 x 91.4 cm
- Weight223 lb / 101.1 kg
- Shipping Dimensions57.5 x 30.5 x 8.5 in / 146 x 77.4 x 21.5 cm
- Shipping Weight602 lb / 273 kg
CERTIFICATIONS
- EN957, CE
WARRANTY (US & CANADA)
- Frame10 Years
- Parts3 Years
- Cables & Labor1 Year
- Cosmetic & Wear Items6 Months
- Upholstery & Padding120 Days
