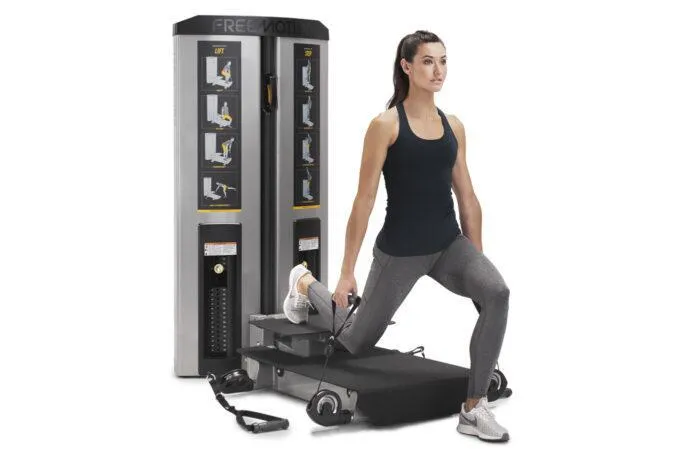

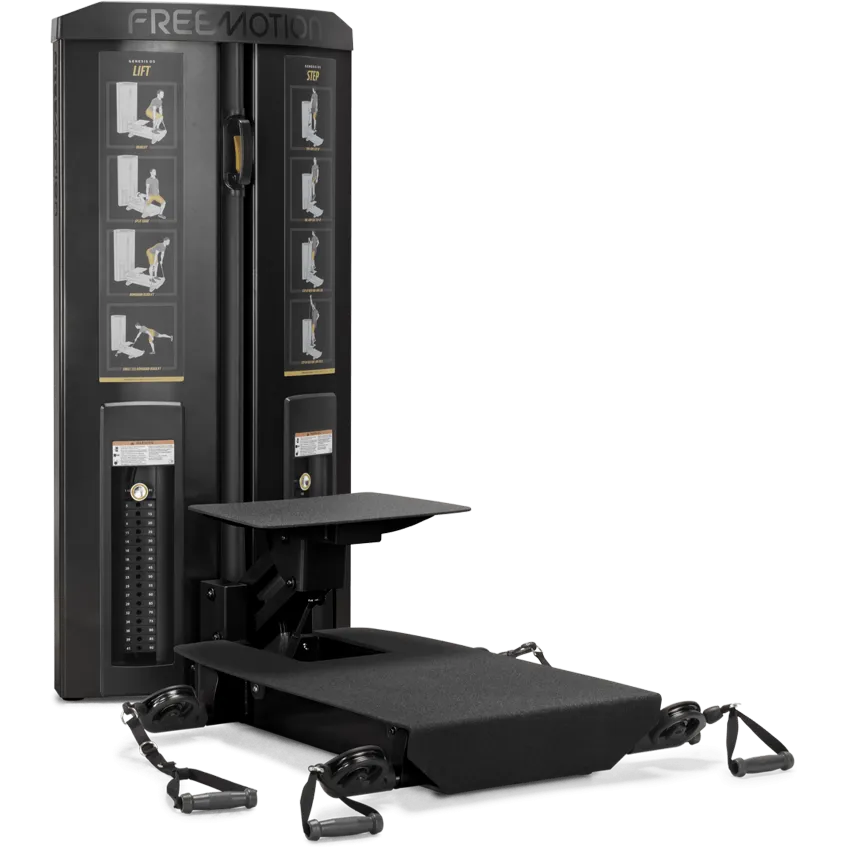

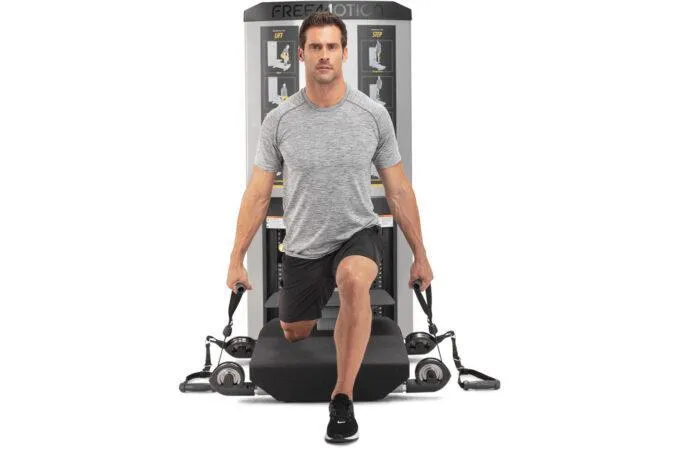

Program explosive, power step-ups superset with a deadlift for a metabolic workout on one versatile machine. The DS Lift/Step machine features the signature GENESIS™ swivel pulleys and cable travel that provide extensive range of motion. Textured platform and step help to ensure secure foot placement. For deconditioned clients or users building up strength after injury, the step adjusts to fit their needs.
FEATURES
WALK UP AND WORK OUT
With no required adjustments, users can simply walk up, put on the foot harness and start moving.
EXTENSIVE CABLE TRAVEL
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
MOVEMENT VARIETY
Handles move independently for single and alternating side exercises.
ENCLOSED WEIGHT STACKS
The weight stacks are enclosed to limit access to moving parts for safety.
BUILT TO LAST
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.

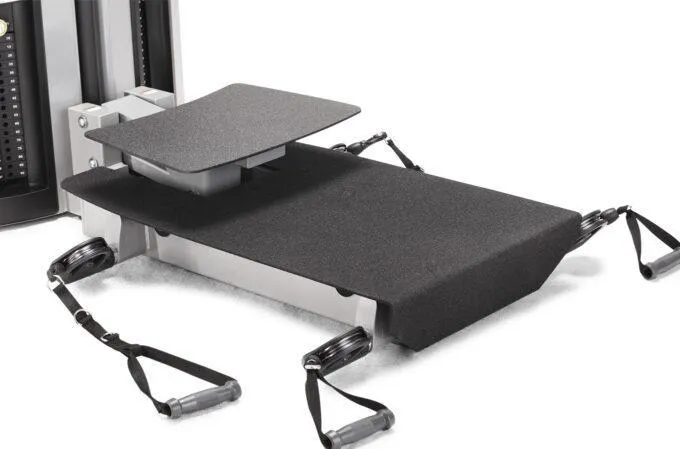

KICK PLATES
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
PRODUCT FEATURE
PDF DOWNLOADS- Instructional PlacardsYes
- AdjustmentsAdjustable step with easy grip handle adjustment
- Resistance1 arm: 90 lb / 40.8 kg
2 arms: 180 lb / 81.6 kg - SeatN/A
- PulleysAluminum swivel pulleys
- Cable Travel72 in / 182.8 cm per arm
- Rubber FeetSoft PVC
- Maximum User Weight400 lb / 181.4 kg
- Americans with Disabilities Act (ADA)N/A
PRODUCT SPECIFICATIONS
- Weight StackQTY 2 - 180 lb / 81.6 kg weight stacks
- Drop Down WeightN/A
- Weight Stack Configuration2 - 10 lb top plates, 34 - 10 lb plates
2 - 4.5 kg top plates, 34 - 4.5 kg plates - Standard Frame ColorBlack River, Platinum Sparkle
- Optional Frame ColorN/A
- Plastic ColorEbony
- Standard Upholstery ColorN/A
- Optional Upholstery ColorN/A
PRODUCT DIMENSIONS & WEIGHT
- Dimensions L x W x H65 x 37 x 64 in / 165.1 x 93.9 x 162.5 cm
- Footprint65 x 37 in / 165.1 x 93.9 cm
- Weight724.6 lb / 328.7 kg
- Shipping Dimensions74.8 x 38.9 x 45.3 in / 189.9 x 99 x 115.1 cm
- Shipping Weight863.1 lb / 391.5 kg
CERTIFICATIONS
- EN957,CE
WARRANTY (US & CANADA)
- Frame10 Years
- Parts3 Years
- Cables & Labor1 Year
- Cosmetic & Wear Items6 Months
- Upholstery & Padding120 Days
